AITZ 3D Area Scan Vision Sensor
 |

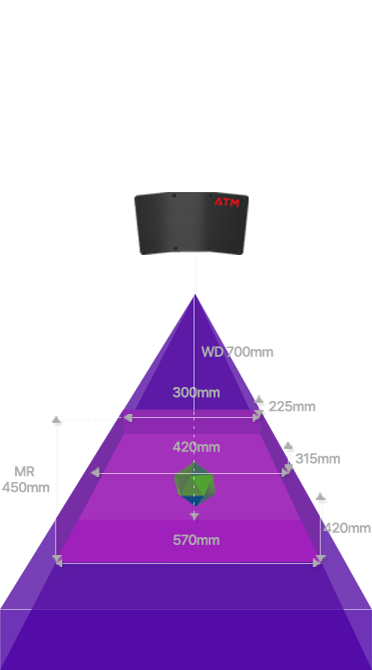

거리(WD) | 700mm |
|
측정범위(MR) | 450mm |
|
Near FOV | 300x225(WD=500mm) |
|
FOV | 420x315(WD=700mm) |
|
Far FOV | 570x420(WD=950mm) |
|

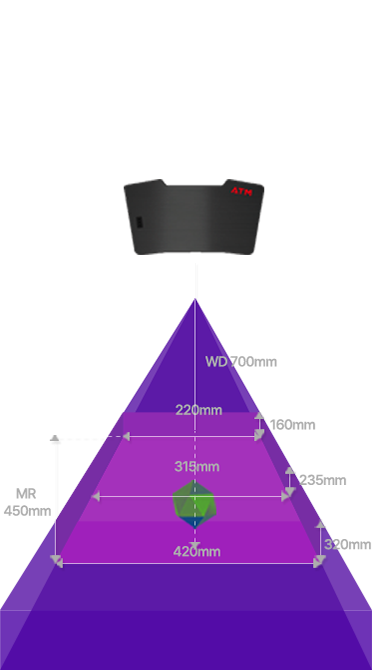

거리(WD) | 700mm |
|
측정범위(MR) | 450mm |
|
Near FOV | 220x160(WD=500mm) |
|
FOV | 315x235(WD=700mm) |
|
Far FOV | 420x320(WD=950mm) |
|

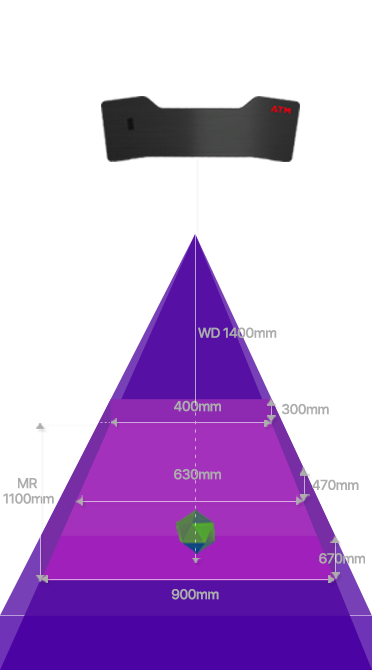

거리(WD) | 1400mm |
|
측정범위(MR) | 1100mm |
|
Near FOV | 400x300(WD=900mm) |
|
FOV | 630x470(WD=1400mm) |
|
Far FOV | 900x670(WD=2000mm) |
|

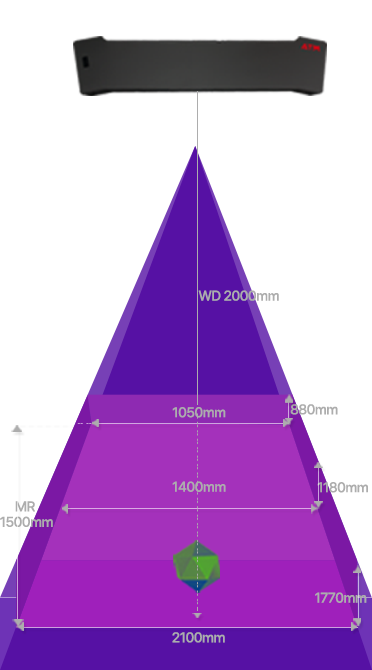

거리(WD) | 2000mm |
|
측정범위(MR) | 1500mm |
|
Near FOV | 1050x880(WD=1500mm) |
|
FOV | 1400x1180(WD=2000mm) |
|
Far FOV | 2100x1770(WD=3000mm) |
AITZ 3D Laser Scan Vision Sensor
|

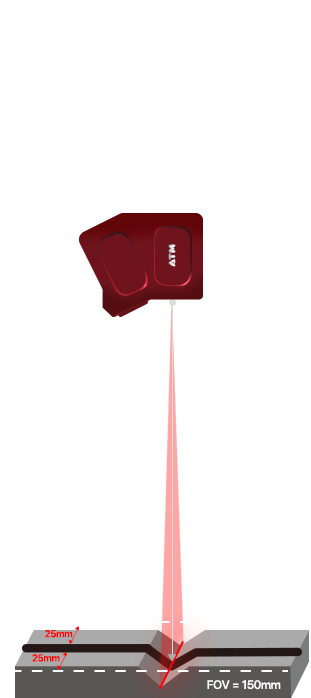

거리(WD) | 200mm |
|
FOV | 150mm |
|
측정 Depth | ±25mm |
|
반복 정밀도 | 0.01mm |
|

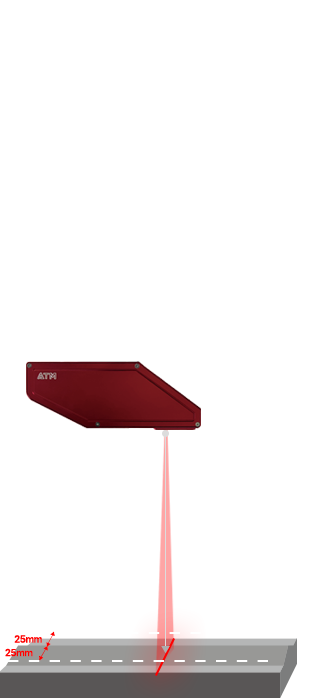

거리(WD) | 100mm |
|
FOV | 60x50(mm) |
|
측정 Depth | ±25mm |
|
반복 정밀도 | 0.01mm |
