AITZ 3D Scan Vision Products
|
AITZ 3D Scan Vision
Ultra-precise 3D scanning vision sensor using beam modules and industrial cameras
Ultra-fast processing with scan speed of 0.2s and data processing speed of 0.5s
Optimized for product positioning and calibration of automation processes
Applicable for bin peaking in semiconductor production process
|
|
|
|
AITZ 3D Scan Vision Products
 |
 |
 |
 |
AITZ 3D Scan Vision enables faster and more accurate performance through independent algorithm development and application.
AITZ 3D Scan Vision Specification
| Model | AITZ 3DU | AITZ 3Ds | AITZ 3DM | AITZ 3DL | ||||
| Weight | 2kg | 2.3kg | 3.7kg | 7.3kg | ||||
| Interface | Gigabit Ethernet | Gigabit Ethernet | Gigabit Ethernet | Gigabit Ethernet | ||||
| Project light source | RGB LED | RGB LED | RGB LED | RGB LED | ||||
| Power supply | 24V | 24V | 24V | 24V | ||||
| Operating current | 5A(Max) | 5A(Max) | 5A(Max) | 5A(Max) | ||||

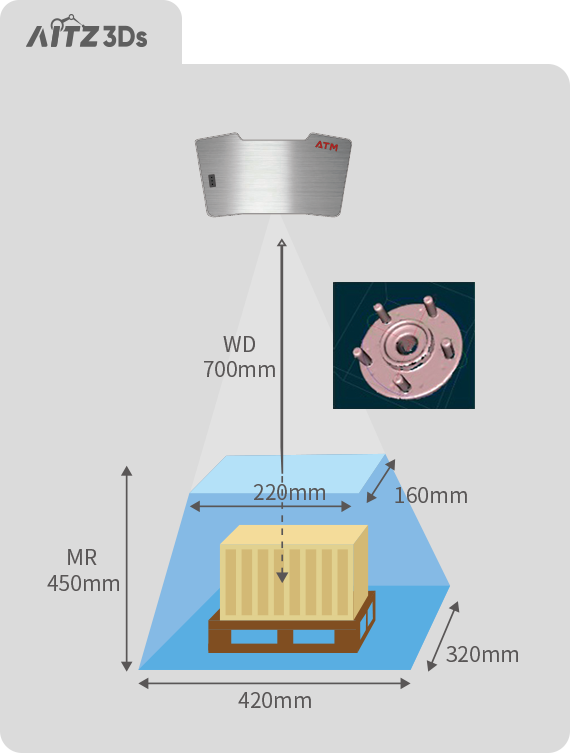

| Width Distance | 700mm | 700mm | 1400mm | 2000mm | ||||
| Measuring range | 450mm | 450mm | 1100mm | 1500mm | ||||
| Near FOV | 300x225(WD=500mm) | 220x160(WD=500mm) | 400x300(WD=900mm) | 1050x880(WD=1500mm) | ||||
| FOV | 420x315(WD=700mm) | 315x235(WD=700mm) | 630x470(WD=1400mm) 14 | 1400x1180(WD=2000mm) | ||||
| Far FOV | 570x420(WD=950mm) | 420x320(WD=950mm) | 900x670(WD=2000mm) | 2100x1770(WD=3000mm) | ||||
| Accuracy | 0.02mm | 0.02mm | 0.1mm | 0.5mm | ||||
| Lens | 12mm | 16mm | 16mm | 12mm | ||||
| Resolution | 2MP | 2MP | 2MP | 5MP |
