Robot Vision System

_


Robot Vision System

The Robot Vision System is a machine vision system using industrial robots,
and it is a high-speed/high-precision sensor system that processes various models simultaneously in a single process line.
The robot vision system uses 2D/3D vision sensors and industrial and robot together.
Vision system consists of industrial cameras (vision sensors), lighting PCs, etc.
and is a non-contact equipment that processes and utilizes images acquired through cameras.
Various applications are available for factory automation.
A system that performs tasks such as product production, assembly,
and inspection, and meets the unmanned factory automation trend.
Its unique trimming and sealing technologies have been applied to overseas automotive manufacturing lines,
and they offer innovative technology that allows for more accurate recognition of the shape of three-dimensional objects and
processing of any vehicle type.

· Use industrial PCs and industrial cameras for industrial sites
· COGNEX / Application of Stable Vision Algorithm Using Our
   Algorithms
· Order Production (OEM) Vision System Supply

ATM ROBOT VISION SYSTEM

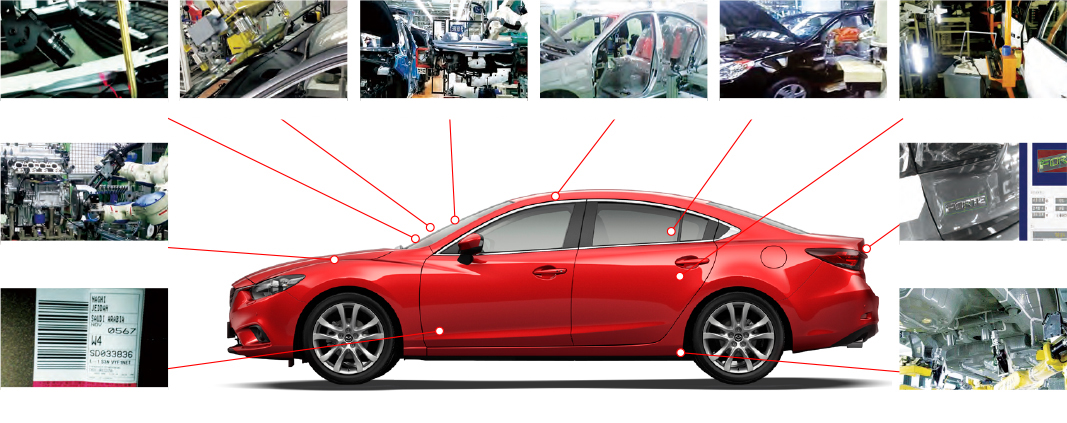

Case study of automobile manufacturing process of robot vision system

The robot vision system is being developed/supplied not only in the automotive manufacturing process
but also in various industrial sites.

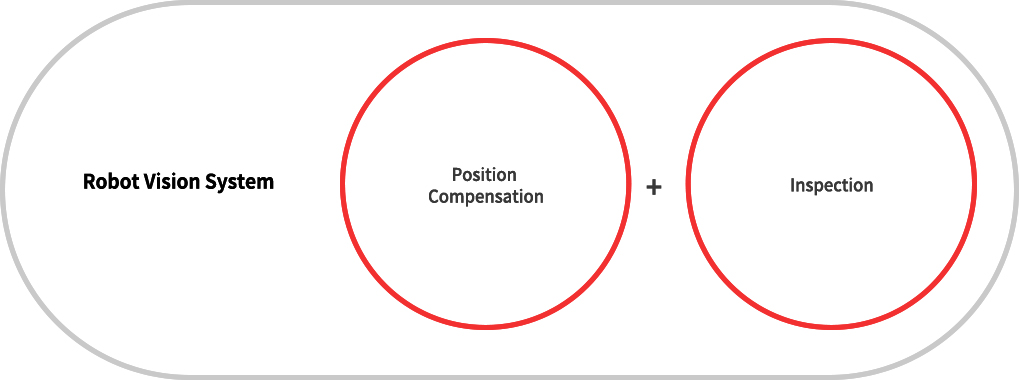

01   .   Position Compensation Vision System 02   .   Inspection Vision System
Position Compensation Vision System

The Postion Compensation Vision System implements assembly/transfer/application/guitar operations in the factory automation line by measuring the position of the product and correcting the location of the production equipment in order to align the positions of the flexible production products placed on the transport devices (conveyors, hangers, etc.).

Characteristics · Suitable for industrial sites by using industrial PCs and industrial cameras
· Using COGNEX / its algorithms, stable pattern matching
· Order Development Production (OEM) Vision System Supply
Classification and Application Example · Classification : 2D/2.5D/3D , Fixed / Mobile , LED / LASER illumination
· Example of application: glass installation, C/PAD installation, chassis torque, TRUNK LID HOOD installation, UBS/UBC/RP sealer application, end-plate sealer application, flywheel assembly, steel plate weld location calibration, etc.

Specification

Vision PC Windows 7or later
PLC Melsel, Siemens, ABB, etc
Robot HYUNDAI, YASKAWA, KAWASAKI, FANUC, etc
Camera industrial BASLER, COGNEX
illumination, Laser Dependent on installation
Communication method LAN, RS 232, etc

Glass Mounted Position Correction System

Characteristics
- If the body position has not been measured or the body position is beyond a certain range, the glass will be fitted with the default values initially entered.
- Low NG rate due to algorithm simplification.


C/PAD Mounted Positioning System

Characteristics
- Register multiple patterns according to vehicle color.
- Wide Position Correction Range.
- Low NG rate due to algorithm simplification.


Chassis Torque Tightening system

Characteristics
- Wide Position Correction Range
- Low NG rate due to algorithm simplification
- Dust prevention according to lower measurement (Camera Cover Automatic OPEN/CLOSE)


Seat-Input Positioning System

Characteristics
- Wide Position Correction Range
- Low NG rate due to algorithm simplification


UBS Application Location Calibration System

Characteristics
- Wide Position Correction Range
- Low NG rate due to algorithm simplification


UBC Application Location Calibration System

Characteristics
- Wide Position Correction Range
- Low NG rate due to algorithm simplification


RPP Application Location Calibr
ation System


Characteristics
- Wide Position Correction Range
- Low NG rate due to algorithm simplification

In addition, ATM's positioning system is being utilized in many other processes.
01   .   Position Compensation Vision System 02   .   Inspection Vision System
Inspection Measurement Vision System

TheInspection measurement vision systemis a solution developed in line with the factory's unmanned automation trend and provides it to various automatic factory areas. Based on stable pattern matching and multiple pattern recognition using global vision maker COGNEX algorithm and its development algorithm, various application algorithms are applied to various inspection equipment at industrial sites.

Measurement inspection It is an inspection equipment that measures the actual dimensions produced by the factory line to detect defective products, usually in 0.01mm units.
We support DB and SPC software for quality control of accepted and defective products.
Inspection of existence and absence The defects of the products are examined and selected through the determination of patterns, colors, contrast, illumination, EDGE, and materials.
Inspection of ID This technology recognizes various 1D/2D bar codes, hieroglyphics, printed characters, and labels to facilitate quality control such as tracking and managing manufactured products.
We have application development / installation / commissioning technology using various ID products such as DATAMAN of COGNEX.
Classification Continuous / non-continuous, non-inspection / OCR / OCV, barcode recognition
Application Example Real-time primer / sealer inspection, door specification glass inspection, ID/OCR inspection, engine mount inspection, Emblem inspection, brake pedal pin inspection, brake hose inspection, etc.
Real-time primer /
sealer inspection
Inspect Door Specifications Glasses Inspection for wheel specification OCR inspection
Emblem presence check Inspect Door Clamping Parts Brake pedal pin inspection Brake groove count check
Inspect engine compartment
parts for fastening
Bar code recognition Body primer inspection

Specification

Vision PC Windows 7 or later
PLC Melsel, Siemens, ABB, etc
Robot HYUNDAI, YASKAWA, KAWASAKI, FANUC, etc
Camera industrial BASLER, COGNEX
illumination, Laser Dependent on installation
Communication method LAN, RS 232, etc

Inspection for application of glass primer

Characteristics
- Zoom in for precision angle correction and calibration
Primary measurement (About angle of rotation measurement) and calibration, secondary measurement
(Zoom in Rotation Angle Measurement) and Calibration
- Improved robot freedom (using 7-axis two-arm robot
- Same applies to panoramic glass


Inspection for application of glass sealer

Characteristics
- Various systems can be applied by camera type
- Same for panoramic glass


Inspection for C/PAD

Characteristics
- Register Multi Pattern
- Location information check


Inspection for wheel specification

Characteristics
- Enhance performance and functionality with high-resolution GigE cameras
- Apply uniform light effect lighting (top four-sided LED bar illumination structured installation)
- Fast response time (Vision fact time: 1 s)


Inspect engine compartment parts for fastening

Characteristics
- On the move, use Trig signal for measurement
- DB management and HIVIS linkage


Inspection for VIN angle

Characteristics
- OCR Character Recognition
- 3 repeated measurements.


Inspect Door Clamping Parts

Characteristics
- Register Multi Pattern
- DB management and HIVIS linkage

In addition, ATM's inspection measurement system is being utilized in many other processes.
